The automation solution focuses on two critical storage management challenges in a VMware ESXi environment. The first is automating the assignment of multiple Block Volumes to multiple ESXi hosts, ensuring efficient, simultaneous attachment with minimal configuration errors. The second challenge involves streamlining the reattachment of Block Volumes to ESXi hosts during disaster recovery (DR) or DR testing, enabling quick and reliable recovery without manual intervention. Both scenarios require robust automation to enhance efficiency, reduce downtime, and ensure data integrity across the infrastructure.
Below is a detailed breakdown of each stage:
Initiate Schedule Function Trigger using OCI Resource:
The process commences by setting up a trigger for an OCI function through an OCI resource. This action is likely to automate the activation of the function at a designated time or event.
Execute OCI Function Trigger:
The OCI function is executed either automatically following the scheduled event or manually by the user.
Establish Connection with OCI Compute, Identity, and Block Service:
The function establishes a connection with essential OCI services, such as Compute, Identity, Secret and Block Storage services. This is crucial to ensure it possesses the necessary permissions and access for performing actions on specified resources.
Validate User Inputs for Instance:
The function validates if all required user inputs for the instance are provided. These inputs may include details like the instance ID, volume IDs, or other configuration settings.
If User Inputs are Correct (Yes):
The process proceeds to attach multiple block volumes to the OCI Compute instance.
If User Inputs are Incorrect (No):
The function prompts the user to provide the accurate information before continuing.
Attach Multiple Block Volumes:
Multiple block volumes are attached to the specified OCI Compute instance based on the user inputs provided.
Retrieve Attached Volume iSCSI Details:
Once the volumes are attached, the function retrieves iSCSI details for the volumes. This information is essential for configuring storage access within the VMware ESXi environment.
Access ESXi Environment, Obtain All ESXi Inventory:
The function logs into the ESXi environment and collects information regarding all ESXi hosts and their configurations.
Verify iSCSI Storage Adapter Availability:
The function verifies the presence of an iSCSI storage adapter on the ESXi hosts.
If iSCSI Storage Adapter is Available (Yes):
The process proceeds to attach the iSCSI volume to all ESXi hosts.
If iSCSI Storage Adapter is Not Available (No):
The process concludes with an exit condition labeled "EndNoAdaptor," signifying that the process cannot continue due to the absence of the required iSCSI storage adapter on the ESXi hosts.
Connect iSCSI Volume to All ESXi Hosts:
The function links the iSCSI volume to all ESXi hosts within the environment.
Rescan All Host Bus Adapters (HBAs):
The final step involves rescanning all Host Bus Adapters (HBAs) on the ESXi hosts to detect and integrate the newly attached storage volumes.
This process diagram effectively outlines an automated procedure for managing block volume attachments to an OCI Compute instance and ensuring their correct configuration within a VMware ESXi environment, including handling scenarios where user input or necessary adapters are missing.
Prerequisites:
Create OCI Block volume https://docs.oracle.com/en/learn/integrate-oci-block-volumes-ocvs/#acknowledgments
Functional OCVS environment
Step 1:
Let's add vCenter Credentials in OCI Vault.
Follow this blog to add credentials in OCI Vault.
Step 2:
Let's create Func.py which will initiate all these steps.
import oci
import logging
from pyVim.connect import SmartConnect, Disconnect
from pyVmomi import vim
import ssl
import time
import os
import json
from fdk import response
import io
import base64
try:
# Oracle Cloud Instance and Volume Details
signer = oci.auth.signers.get_resource_principals_signer()
compute_client = oci.core.ComputeClient(config={},signer=signer)
block_volume_client = oci.core.BlockstorageClient(config={},signer=signer)
identity_client = oci.identity.IdentityClient(config={},signer=signer)
secret_client = oci.secrets.SecretsClient(config={},signer=signer)
root_compartment_id = os.getenv("ROOT_COMPARTMENT_OCID") # Use an empty string to start from the root compartment
compartment_name = os.getenv("Compartment_name") # Update with your compartment name
ad_name = os.getenv("ad_name")
vcenter_ip = os.getenv("vcenter_ip")
combined_secret_ocid = os.getenv("combined_secret_ocid")
shape = os.getenv("BM_shape")
block_names = os.getenv("OCI_Block_Name", "")
block_volume_names= block_names.split(',') if block_names else []
logging.getLogger().info(f"block volume name found : {block_volume_names}")
if not root_compartment_id:
raise ValueError("ERROR: Missing configuration key root_compartment_id")
if not compartment_name:
raise ValueError("ERROR: Missing configuration key compartment_name")
if not ad_name:
raise ValueError("ERROR: Missing configuration key ad_name")
if not vcenter_ip:
raise ValueError("ERROR: Missing configuration key vcenter_ip")
if not combined_secret_ocid:
raise ValueError("ERROR: Missing configuration key combined_secret_ocid")
if not shape:
raise ValueError("ERROR: Missing configuration key shape")
if not block_names:
raise ValueError("ERROR: Missing configuration key block_names")
except Exception as e:
logging.getLogger().error(e)
raise
def get_compartment_id_by_name(identity_client, compartment_name, root_compartment_id=""):
"""
Retrieves the compartment OCID by its name.
"""
print(f"Retrieving compartment ID for name {compartment_name}...")
# List all compartments
compartments = identity_client.list_compartments(
compartment_id=root_compartment_id,
compartment_id_in_subtree=True
).data
# Filter compartments by name
for compartment in compartments:
if compartment.name == compartment_name:
print(f"Found compartment: {compartment.name} with OCID: {compartment.id}")
return compartment.id
print(f"No compartment found with name {compartment_name}")
return None
def get_ad_ocid_by_name(identity_client, compartment_id, ad_name):
try:
# List all availability domains in the specified compartment
ads = identity_client.list_availability_domains(compartment_id).data
# Iterate through the list to find the AD with the given name
for ad in ads:
if ad.name == ad_name:
return ad.id # Return the OCID of the matching AD
# If the AD name is not found, return None
print(f"Availability Domain with name '{ad_name}' not found.")
return None
except oci.exceptions.ServiceError as e:
print(f"Service error: {e}")
return None
def get_instances_by_shape(compute_client, compartment_id, shape):
"""
Retrieves a list of instance IDs filtered by shape.
"""
print(f"Retrieving instances with shape {shape}...")
# List all instances in the specified compartment
instances = compute_client.list_instances(compartment_id).data
# Filter instances by the specified shape
filtered_instances = [instance.id for instance in instances if instance.shape == shape]
if not filtered_instances:
print(f"No instances found with shape {shape}")
else:
print(f"Found {len(filtered_instances)} instances with shape {shape}")
return filtered_instances
def get_block_volume_by_name(block_volume_client, compartment_id, block_volume_name):
"""
Retrieves the block volume OCID by its name.
"""
print(f"Retrieving block volume with name {block_volume_name}...")
# List all block volumes in the specified compartment
print(f"Compartment OCID: {compartment_id}")
volumes_data = block_volume_client.list_volumes(compartment_id=compartment_id)
volumes = volumes_data.data
# Filter the volumes by name
for volume in volumes:
if volume.display_name == block_volume_name:
print(f"Found block volume: {volume.display_name} with OCID: {volume.id}")
return volume.id
print(f"No block volume found with name {block_volume_name}")
return None
def get_secret_value(secret_client, secret_id):
try:
response = secret_client.get_secret_bundle(secret_id)
secret_content = response.data.secret_bundle_content.content
decoded_secret = base64.b64decode(secret_content).decode("utf-8")
return decoded_secret
except oci.exceptions.ServiceError as e:
print(f"Failed to retrieve secret: {e}")
raise
def parse_credentials(secret_value):
try:
username, password = secret_value.split('/', 1)
return username, password
except ValueError:
print("Failed to parse secret value. Ensure it is in 'username/password' format.")
raise
def attach_oci_block_volume(compute_client, volume_id, instance_id, availability_domain):
"""
Attaches an OCI block volume to an instance and returns the attachment info.
"""
print(f"Attaching OCI block volume {volume_id} to instance {instance_id} in {availability_domain}...")
attach_details = oci.core.models.AttachIScsiVolumeDetails(
display_name="iSCSI-Attachment",
instance_id=instance_id,
volume_id=volume_id,
is_shareable=True,
type="iscsi"
)
response = compute_client.attach_volume(attach_details)
attachment_id = response.data.id
while True:
attachment = compute_client.get_volume_attachment(attachment_id).data
if attachment.lifecycle_state == 'ATTACHED':
print("Volume successfully attached.")
return attachment
elif attachment.lifecycle_state == 'DETACHED':
print("Volume is detached. Retry the attachment.")
return None
else:
print("Waiting for attachment to complete...")
time.sleep(10)
def get_iscsi_target_info(compute_client, volume_attachment_id):
"""
Retrieve the iSCSI target information from the OCI block volume.
"""
print(f"Getting iSCSI target information for attachment {volume_attachment_id}...")
volume_attachment = compute_client.get_volume_attachment(volume_attachment_id).data
iscsi_targets = volume_attachment.iqn, volume_attachment.ipv4, volume_attachment.port
print(f"iSCSI target IP: {volume_attachment.ipv4}, Port: {volume_attachment.port}, IQN: {volume_attachment.iqn}")
return iscsi_targets
def rescan_iscsi_adapter(host, iscsi_adapter):
"""
Rescans the iSCSI adapter on the ESXi host.
"""
print(f"Rescanning iSCSI adapter {iscsi_adapter.device} on host {host.name}...")
try:
# Perform the rescan
host.configManager.storageSystem.RescanHba(iscsi_adapter.device)
print("iSCSI adapter rescan completed successfully.")
except Exception as e:
print(f"Failed to rescan iSCSI adapter {iscsi_adapter.device}: {e}")
def attach_iscsi_target_to_esxi(host, iscsi_target_ip, iscsi_target_port, iscsi_name):
"""
Attaches an iSCSI target to an ESXi host.
"""
print(f"\nAttaching iSCSI target to ESXi host: {host.name}")
# Get the host's storage system
storage_system = host.configManager.storageSystem
# Get iSCSI software adapters (InternetScsiHba)
hba_list = storage_system.storageDeviceInfo.hostBusAdapter
iscsi_adapter = None
for hba in hba_list:
if isinstance(hba, vim.host.InternetScsiHba):
iscsi_adapter = hba
print(f"Found iSCSI adapter: {iscsi_adapter.device}")
break
if not iscsi_adapter:
print(f"No iSCSI adapter found on host {host.name}. Skipping...")
return
# Create the SendTarget object with the new target IP and port
send_target = vim.host.InternetScsiHba.SendTarget(address=iscsi_target_ip, port=iscsi_target_port)
# Attach the iSCSI target to the adapter
try:
storage_system.AddInternetScsiSendTargets(iscsi_adapter.device, [send_target])
print(f"Successfully attached iSCSI target {iscsi_target_ip}:{iscsi_target_port} to {host.name}")
rescan_iscsi_adapter(host, iscsi_adapter)
except Exception as e:
print(f"Failed to attach iSCSI target to {host.name}: {e}")
def get_all_esxi_hosts(content):
"""
Helper function to retrieve all ESXi hosts in the vCenter/ESXi environment.
"""
container = content.viewManager.CreateContainerView(content.rootFolder, [vim.HostSystem], True)
esxi_hosts = container.view
container.Destroy()
return esxi_hosts
def attach_iscsi_target_to_all_esxi_hosts(vcenter_ip, username, password, iscsi_target_ip, iscsi_target_port, iscsi_name):
"""
Connect to vCenter and attach the iSCSI target to all ESXi hosts.
"""
# Disable SSL certificate verification for demo purposes
context = ssl.SSLContext(ssl.PROTOCOL_TLSv1_2)
context.verify_mode = ssl.CERT_NONE
# Connect to vCenter/ESXi
si = SmartConnect(host=vcenter_ip, user=username, pwd=password, sslContext=context)
try:
content = si.RetrieveContent()
# Get all ESXi hosts
esxi_hosts = get_all_esxi_hosts(content)
print(f"Found {len(esxi_hosts)} ESXi hosts in the environment.")
# Loop through each ESXi host and attach the iSCSI target
for host in esxi_hosts:
attach_iscsi_target_to_esxi(host, iscsi_target_ip, iscsi_target_port, iscsi_name)
except Exception as e:
print(f"An error occurred: {e}")
finally:
Disconnect(si)
# Main Function
def handler(ctx, data: io.BytesIO = None):
try:
logging.getLogger().info("function handler start")
compartment_id = get_compartment_id_by_name(identity_client, compartment_name, root_compartment_id)
if not compartment_id:
print("Exiting: Compartment with specified name not found.")
return
# Get all instance IDs with the specified shape
instance_ids = get_instances_by_shape(compute_client, compartment_id, shape)
availability_domain = get_ad_ocid_by_name(identity_client, compartment_id, ad_name)
# Get block volume ID by name
for block_volume_name in block_volume_names:
volume_id = get_block_volume_by_name(block_volume_client, compartment_id, block_volume_name)
if not volume_id:
logging.getLogger().info("Exiting: Block volume with specified name not found.")
return
# Loop through each instance and attach the block volume
#availability_domain = get_ad_ocid_by_name(identity_client, compartment_id, ad_name)
for instance_id in instance_ids:
attachment_info = attach_oci_block_volume(compute_client, volume_id, instance_id, availability_domain)
iscsi_iqn, iscsi_ip, iscsi_port = get_iscsi_target_info(compute_client, attachment_info.id)
combined_secret = get_secret_value(secret_client, combined_secret_ocid)
vcenter_username, vcenter_password = parse_credentials(combined_secret)
# Attach iSCSI target to all ESXi hosts
attach_iscsi_target_to_all_esxi_hosts(vcenter_ip, vcenter_username, vcenter_password, iscsi_ip, iscsi_port, iscsi_iqn)
except Exception as handler_error:
logging.getLogger().error(handler_error)
return response.Response(
ctx,
response_data=json.dumps({"status": "Success"}),
headers={"Content-Type": "application/json"}
)Step 3:
Initialize the function within your designated compartment.
You will find all steps in this blog : https://www.asknikhil.com/post/leverage-oci-functions-for-automation
Let's understand rest of Function components :
DockerFile
FROM fnproject/python:3.11-dev as build-stage
WORKDIR /function
ADD requirements.txt /function/
RUN pip3 install --target /python/ --no-cache --no-cache-dir -r requirements.txt &&\
rm -fr ~/.cache/pip /tmp* requirements.txt func.yaml Dockerfile .venv &&\
chmod -R o+r /python
ADD . /function/
RUN rm -fr /function/.pip_cache
FROM fnproject/python:3.11
WORKDIR /function
COPY --from=build-stage /python /python
COPY --from=build-stage /function /function
RUN chmod -R o+r /function
ENV PYTHONPATH=/function:/python
ENTRYPOINT ["/python/bin/fdk", "/function/func.py", "handler"]Function.Yaml
schema_version: 20180708
name: vmware_volume_automation
version: 0.0.13
runtime: python
build_image: fnproject/python:3.11-dev
run_image: fnproject/python:3.11
entrypoint: /python/bin/fdk /function/func.py handler
memory: 256Requirements.txt
fdk>=0.1.75
oci
pyvmomi==8.0.3.0.1Let's Build Image :
fn -v deploy --app VMware_volume_automation
Note : Setting appropriate memory and timeout values is crucial. Failure to do so may result in the function throwing a 504 error message due to a timeout.
Let's create Function Configurations parameters:
It is crucial to ensure that all configuration parameters are present for the function to operate effectively.
The logic implemented involves filtering instances with a specific shape in AD; upon finding such an instance, it will attach a Block Volume.
The Block Volume is filtered based on its Name, and if the designated Block Name is identified, it will be attached in the Shareable Access type.
Now our Function is ready.
To Trigger function we are going to leverage OCI Resource Scheduler service.
Step 4:
Let's Create OCI Resource scheduler :
Go to OCI console, select Governance & Administration and Choose service Resource Scheduler.
Choose Resource Type : FunctionsFunction
Select your Function
Choose your Schedule
Next and Click Finish.
To execute Functions OCI resource scheduler requires Access on OCI Function family.
Step 5:
Let's Create Dynamic Group and Policy:
Copy Resource scheduler OCID.
Create DG:
3. Copy Dynamic Group Name
4. Create Policy
Now Resource scheduler will able to execute Function.
Resource Scheduler Work request successfully completed.

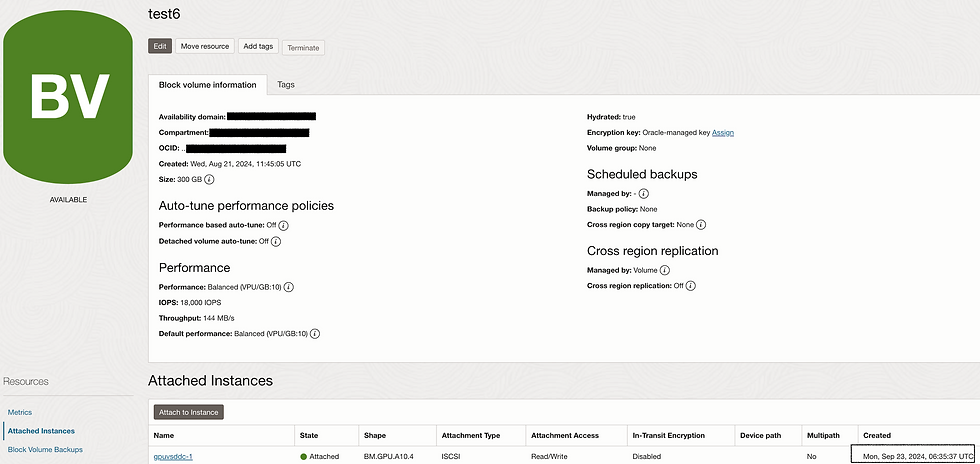

Let's Validate Block Volume status :
Let's Validate iSCSI targets in vCenter:
Both iSCSI targets created successfully.
In tasks we can see both iSCSI targets added and Rescan HBA's initiated.
In this way you can Securely automate multiple Block volume attachment in OCVS environment. Here you don't need to provide any API key and vCenter username and password. It automatically collects vCenter username and password from OCI secrets.
You can download Function from this repository:
Comments
